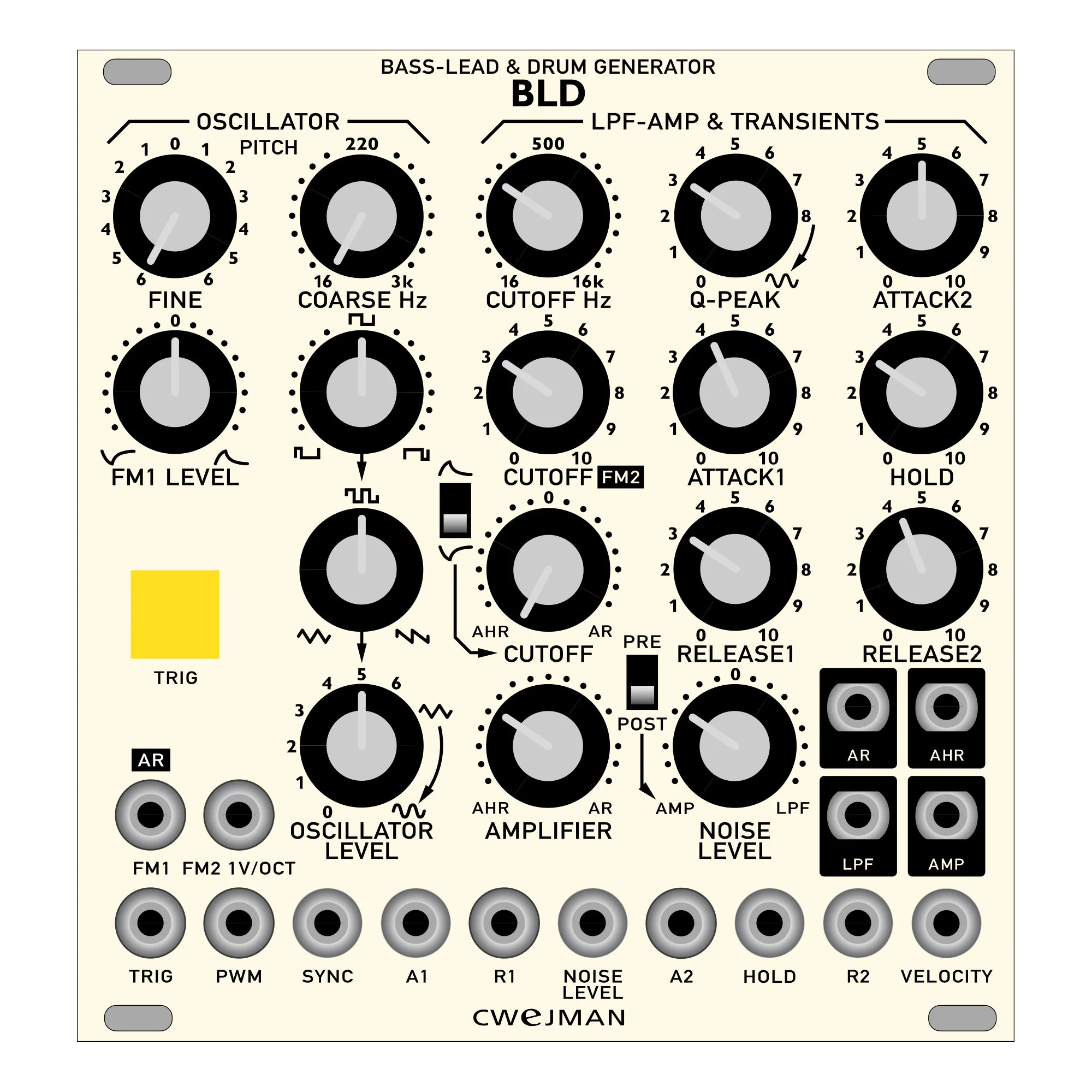

BLD

Cwejman’s BLD module specializes in drum sounds, basses and leads. The synthesizer voice consists of an oscillator plus noise generator, a filter, a VCA as well as an AR and AHR envelope. The Mk2 module is an extensively overhauled version. Versatility and sound have been significantly enhanced. The BLD is primarily meant for producing juicy drum sounds. However, a wide range of crisp leads and basses can be created as well. Using an oscillator, filter and envelopes separately is also not a problem with the Mk2 module.

The BLD’s noise source may be fed to the filter or the VCA, either before or after the gain stage.

While the first BLD was equipped with a pure low-pass filter design, the Mk2 version can be switched to a band-pass mode.

The edge steepness is variable as well. More precisely, you may choose between -24 dB and -36 dB per octave. The cutoff parameter can be altered manually and via the AR respectively AHR envelope. – In positive or negative direction. Furthermore, there is a LPF CV input and this is calibrated to 1V/OCT tracking. The CUTOFF FM2 pot is directly connected to the FM2 input and calibrated to 1V/OCT if this pot is set to max CW. With most of these options, you may utilize attenuators for adjusting the modulation intensity. High resonance settings make the filter self-oscillate. "

24HP
